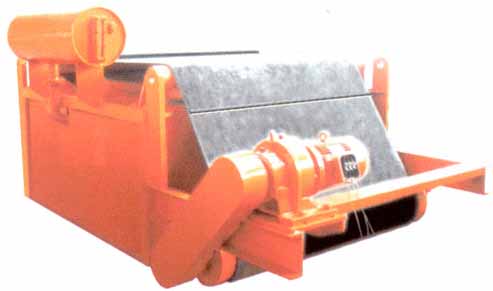

Feature:

• Perfect design for getting maximum magnetic strength.
• High-quality Aluminum or Copper wire winded under strict procedure to achieve powerful, oil-cooled electromagnet discontinuous running.
• Reliable, durable belt with rubber cleats.
• Equipped with full function control box, which is made of electric components produced by world-famous suppliers such as Siemens, Schneider and Chint.
• High-quality cooling oil and optimized oil circulating design makes lower temperature rise

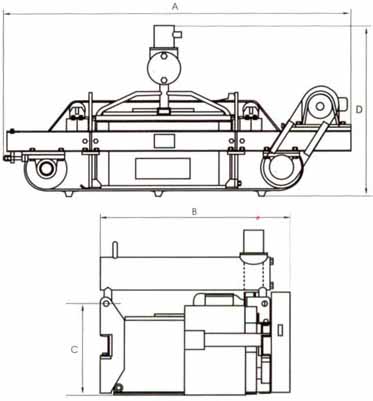

Technical Parameters of ZCDF Oil-cooling Electromagnetic Separators Type Belt Width Suspension Height Rated(SHR) H Magnetic Intensity at SHR Excitation power Outline Dimensions (mm) Weight mm mm GS kw A B C D kg ZCDF-6 650 200 700 3.5 2300 926 370 870 1300 ZCDF-8 800 250 700 4.5 2500 1133 460 960 1900 ZCDF-10 1000 300 700 6 2800 1333 520 1020 2800 ZCDF-12 1200 350 700 8 3100 1593 620 1120 3600 ZCDF-14 1400 400 700 9.5 3450 1793 700 1200 4300 ZCDF-16 1600 450 700 11.5 3800 2000 750 1250 6300 Type Belt Width Suspension Height Rated(SHR) H Magnetic Intensity at SHR Driven Power Excitation power Outline Dimensions (mm) Weight mm mm GS kw kw A B C D kg ZCDF-6 T1 650 200 900 --- 5 2400 926 410 910 1500 T2 1200 0.37 6.5 2500 1260 470 970 2000 T3 1500 0.55 9.5 2600 1440 550 1050 2600 ZCDF-8 T1 800 250 900 --- 6.5 2600 1133 500 1000 2100 T2 1200 0.55 9.5 2700 1470 550 1050 2800 T3 1500 1.1 12.5 2900 1540 640 1140 3550 ZCDF-10 T1 1000 300 900 --- 9 2900 1333 580 1080 3250 T2 1200 1.1 12.5 2900 1470 640 1140 3750 T3 1500 1.5 16.5 3200 1890 730 1230 5000 ZCDF-12 T1 1200 350 900 --- 11 3300 1593 650 1150 4500 T2 1200 1.5 16.5 3300 2090 730 1230 5400 T3 1500 0.55×2 21 3450 1930 850 1350 6700 ZCDF-14 T1 1400 400 900 --- 14 3600 1793 750 1250 6200 T2 1200 0.55×2 20 3600 2130 860 1360 7000 T3 1500 1.1×2 26.5 3700 2130 960 1460 8800 ZCDF-16 T1 1600 450 900 --- 16.5 4200 2000 850 1350 8700 T2 1200 1.1×2 25 4200 2340 950 1450 9700 T3 1500 1.5×2 33 4300 2490 1100 1600 12000 (For Reference Only) Back to Magnetic-Separator
