Magnetic Compound for Dry Pressing Ferrite Magnet

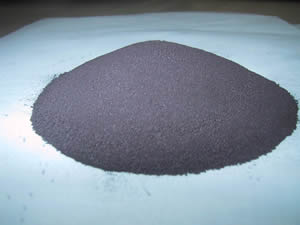

Strontium Dry Pressing Ferrite Magnetic compound are suitable for producing magnets by dry pressing.
Which have been added proper quantity of binders and lubricants. And pass through 120 mesh sieve,so as binders to be uniformly distributed for better orientation.we could supply the compount in both spray dried or vibration granulated form .





Characteristics of products

Testing Method
Br(mT) bHc(kA/m) iHc(kA/m) (BH)max(kj/m3) Granularity
( )
Typical Min Typical Min Typical Min Typical Min
YXF-1 BaFe12O19 150 140 95.5 87.5 183 167

2.0 ~ 4.0

 Green piece
YXF-2 BaFe12O19 180 175 119 115 183 167 1.1 ~ 1.4 Green piece
YXF-2b BaFe12O19 180 175 111 107 151 143 1.5 ~ 1.8 Green piece
YXF-2c BaFe12O19

180 175 111 107 151 143 1.8 ~ 2.1 Green piece
YXF-2S SrFe12O19 180 175 119 115 183 167 1.1 ~ 1.4 Green piece
YXF-2Sb SrFe12O19 180 175 111 107 159 143 1.5 ~ 1.8 Green piece
YXF-2Sc SrFe12O19 180 175 111 107 159 143 1.8 ~ 2.1 Green piece

YXC series Dry Pressing Strontium Ferrite Material Properties

Type

Br

Hcb

Hcj

(BH)max

Sintered density

Grade

mT

Gs

KA/m

Oe

KA/m

Oe

KJ/m3

MGOe

P(g/cm3)

YXC-C1T

230

2300

150

1880

240

3010

9.50

1.19

4.6+/-0.2

YXC-C2T

230

2300

155

1950

278

3500

9.60

1.20

4.6+/-0.2

YXC-C3T

210

2100

150

1880

350

4400

9.00

1.13

4.6+/-0.2

YXC-C1

370

3700

215

2700

231

2900

24.6

3.08

4.6+/-0.2

YXC-C2

385

3850

219

2750

231

2900

26.0

3.27

4.6+/-0.2

YXC-C3

395

3950

231

2900

235

2950

28.8

3.60

4.6+/-0.2
